Part Photos

PZ7/8/9/10/11

DESCRIPTION PZ-7 PZ-8 PZ-9 PZ-10 & PZ-11
Fluid Cylinder, Studded 205PZL029D 205PZL029D 205PZL029D 202PZL029B
Valve Cover 2011860 2011860 2011860 200PZL147
Valve Cover Ring 2011699 2011699 2011699 200PZL387
Valve Cover Lock 2011857 2011857 2011857 200PZL587
Valve Guide Assembly 2011706 2011706 2011706 200PZL483A
Valve Guide Retaining Plate 2011701 2011701 2011701 2011701
Valve Cover Gasket 2011862 2011862 2011862 204PZL715
Valve Cover Gasket Retaining Ring 2011861 2011861 2011861 -----
Valve Guide Busing 2007674 2007674 2007674 2007674
Piston Rod-Clamp Type 201PZG060 1PZ183 1PZ183 200PZL060
Extension Rod-Clamp Type 200PZG839 1PO183 PZ183 200PZL839
Piston Rod Clamp 2012240 2012240 2012240 200PZL092A
Oil Stop Head Seal 2011872 2011872 2011872 2011872
Suction Manifold to Cylinder Gasket 25G41 25G41 25G41 25G41
Discharge manifold to Cylinder Gasket 25AL35 25AL35 25AL35 25AL35
Liner to Cylinder Gasket 25AT37 25AT37 25AT37 25AT37
Valve Guide Washer 95W2 95W2 95W2 95W2
Valve Guide Capscrew 75AA178 75AA178 75AA178 75AA178

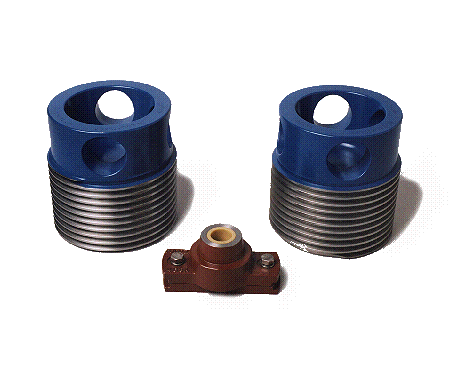

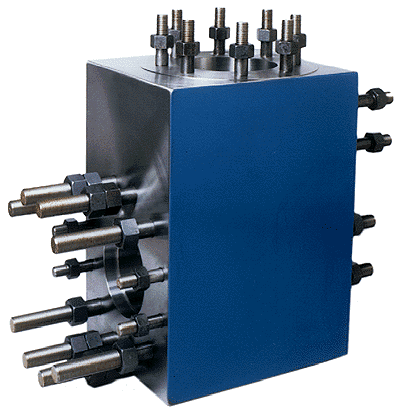

Click Here for an Enlargement Part Photos Click Here for an Enlargement

Kandle Oilfield Products, Inc. ("KOP") is an indepentdent manufacturer of replacement parts. KOP is neither a licensee, nor is it affliated with any of the original equipment manufacturers named above. The manufacturers names or trademarks used herein are solely for identification purposes and are not intended by KOP to cause confusion as to the source, sponsorship, or quality of the parts manufactured by KOP. The original manufacturers named above and throughout this catalog do not sponsor, promote, warranty or endorse KOP's products.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for identification purposes only.


Gardner-Denver is a registered trademark of Cooper Industries and/or Cardwell International. KOP is in no way affiliated with these companies.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for identification purposes only.
