"OILWELL" MUD PUMPS

main menu   •  contacts   •  table of contents   •  disclaimer

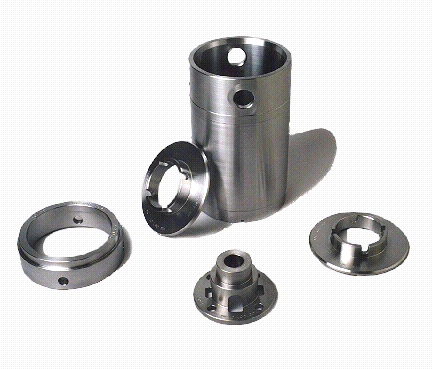

Part Photo

A850/1100/1400/1700PT

DESCRIPTION A850PT A1100PT A1400PT A1700PT
Valve Guide 10-300-004 10-300-004 10-300-004 10-300-004
Valve Cover 10-300-005 10-300-005 10-300-005 10-300-005
Valve Cover Gasket 10-300-011 10-300-011 10-300-011 10-300-011
Diaphragm Housing 10-300-020 10-300-020 10-300-020 10-300-020
Diaphragm Gland 10-300-021 10-300-021 10-300-021 10-300-021
Lantern Ring 10-300-022 10-300-022 10-300-022 10-300-022
Crosshead Pin ---- ---- 10-300-131 10-300-131
Crosshead ---- ---- 10-300-132 10-300-132
Crosshead Guide (Upper) ---- ---- 10-300-141 10-300-141
Extension Rod 10-300-142 10-300-142 10-300-142 10-300-142
Liner Adapter 10-300-183 10-300-183 10-300-183 10-300-183
Wear Plate 10-300-184 10-300-184 10-300-184 10-300-184
Liner Spacer Ring 10-300-185 10-300-185 10-300-185 10-300-185
Liner Centering Ring ---- 10-300-186 10-300-186 10-300-186
Suction Manifold Gasket 10-300-201 10-300-201 10-300-201 10-300-201
Crosshead Guide (Lower) ---- ---- 10-300-233 10-300-233
Piston Rod Stud 10-305-203 10-305-203 10-305-203 10-305-203
Liner Wear Plate Gasket 20-100-008 20-100-008 20-100-008 20-100-008
Extension Rod Wiper Seal 20-100-015 20-100-015 20-100-015 20-100-015
Piston Rod 20-150-123 20-150-123 20-150-123 20-150-123
Piston Rod Extension 20-150-125 20-150-125 20-150-125 20-150-125
Piston Rod Clamp 20-150-132 20-150-132 20-150-132 20-150-132
Valve Guide Bushing 20-200-004 20-200-004 20-200-004 20-200-004
Liner Flushing Shield 20-460-668 20-460-668 20-240-668 20-460-668
Valve Guide Capscrew 75-632-234 75-632-234 75-632-234 75-632-234
Discharge Manifold O-ring 99-609-345 99-609-345 99-609-345 99-609-345
Discharge Manifold 10-303-130 10-303-175 10-300-340 10-300-267

Product Photo

Click Here for an Enlargement

Kandle Oilfield Products, Inc. ("KOP") is an indepentdent manufacturer of replacement parts. KOP is neither a licensee, nor is it affliated with any of the original equipment manufacturers named above. The manufacturers names or trademarks used herein are solely for identification purposes and are not intended by KOP to cause confusion as to the source, sponsorship, or quality of the parts manufactured by KOP. The original manufacturers named above and throughout this catalog do not sponsor, promote, warranty or endorse KOP's products.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for identification purposes only.

Oilwell is a registered trademark of National/Oilwell. KOP is in no way affiliated with this company.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for identification purposes only.
