"NATIONAL" MUD PUMPS

main menu   •  contacts   •  table of contents   •  disclaimer

Part Photos

Pump Model 14P220

DESCRIPTION

PART #

DESCRIPTION

PART #

Discharge Module, Studded 1295601 Seal Retainer 1295174
Suction Module, Studded 1295604 Back Up Ring 1295175
Valve Guide Holder 1292140 Threaded Ring 1295176
Valve Guide Insert 1292141 Discharge Connector 1295252
Int. Rod baffle 1292194 Discharge Connector Adapter 1295253
Intermediate Rod 1295083 Module Seal 1295257
Piston Rod Clamp 1295085 Discharge Spacer Seal 1295258
Sub Rod 1295146 Wear Plate 1295256
Piston Rod 1295147 Suction Manifold Seal 1540021
Liner Bushing 1295165 Rectangular Packing 2410031-438
Liner Clamp 1295166 Rectangular Packing 2410031-440
Valve Cover 1295172 Discharge Spacer Studded 1295262
Valve Cover Gasket 1540163 Ring Joint Gasket 6907339-S



12P160

DESCRIPTION PART NO. DESCRIPTION PART NO.
Discharge Module, Studded 1292240 Back Up Ring 1292175
Suction Module, Studded 1292243 Threaded Ring 1292176
Main Bearing Cage 1292011 Wedge Adjusting Screw 1292178
Crosshead, R.H. & Center 1292015 Wedge Retaining Spring 1292181
Intermediate Rod Oil Shield 1292016 Intermediate Rod Oil Wiper 1292182
Crosshead Liner 1292017 Intermediate Rod Baffle 1292194
Crosshead Pin 1292028 Strainer Cross, 6" Flange 1292215
Intermediate Rod 1292083 Strainer Cross, 5" Flange 1292225
Piston Rod Clamp 1292085 Discharge Connector 1292252
Crosshead, L.H. 1292090 Discharge Connector Adapter 1292253
Liner Spray Manifold 1292120 Suction Module & Wear Plate Seal 1292257
Valve Guide Holder 1292140 Discharge Spacer Seal 1292258
Valve Guide Insert 1292141 Discharge Spacer, Studded 1292262
Sub Rod 1292146 Wear Plate 1292266
Piston Rod 1292147 Locking Wedge Assembly 1292268
Liner Bushing 1292165 Valve Cover Gasket 1540127
Liner Clamp 1292166 Suction Manifold Seal 1540851
Wedge Adjusting Screw Washer 1292171 Rectangular Packing 2410031-433
Valve Cover 1292172 Rectangular Packing 2410031-437
Seal Retainer 1292174 Ring Joint Gasket 6908040

10P130

DESCRIPTION PART NO. DESCRIPTION PART NO.
Discharge Module, Studded 1290335 Threaded Ring 1290308
Suction Module, Studded 1290338 Wedge Adjusting Screw Washer 1290315
Intermediate Rod Oil Wiper 1283099 Liner Spray Manifold 1290320
Crosshead, R.H. & Center 1290015 Discharge Connector 1290342
Crosshead Liner 1290017 Discharge Connector Adapter 1290343
Crosshead Pin 1290028 Suction Module & Wear Plate Seal 1290344
Intermediate Rod 1290083 Discharge Spacer Seal 1290345
Piston Rod Clamp 1290085 Sub Rod 1290346
Crosshead, L.H. 1290090 Piston Rod 1290347
Liner Bushing 1290165 Discharge Spacer, Studded 1290348
Liner Clamp 1290166 Wear Plate 1290357
Seal Retainer 1290174 Valve Guide Holder 1292140
Back Up Ring 1290175 Valve Guide Insert 1292141
Wedge Adjusting Screw 1290178 Valve Cover Gasket 1540126
Wedge Retaining Spring 1290181 Suction Manifold Seal 1590051
Intermediate Rod Baffle 1290194 Rectangular Packing 2410031-348
Intermediate Rod Shield 1290349 Rectangular Packing 2410031-427
Valve Cover 1290307 Ring Joint Gasket 6908033

9P100

DESCRIPTION PART NO. DESCRIPTION PART NO.
Discharge Module, Studded 1293240 Piston Rod Clamp 1293085
Suction Module, Studded 1290338 Crosshead, L.H. 1293090
Seal Retainer 1290174 Sub Rod 1293146
Back Up Ring 1290175 Piston Rod 1293147
Wedge Adjusting Screw 1290178 Liner Bushing 1293165
Wedge Retaining Spring 1290181 Liner Clamp 1293166
Valve Cover 1290307 Intermediate Rid Oil Wiper Seal 1293182
Threaded Ring 1290308 Liner Spray Manifold 1293193
Wedge Adjusting Screw Washer 1290315 Intermediate Rod Baffle 1293194
Discharge Connector 1290342 Discharge Spacer, Studded 1293243
Discharge Connector Adapter 1290343 Valve Guide Holder 1292140
Suction Module & Wear Plate Seal 1290344 Valve Guide Insert 1292141
Discharge Spacer Seal 1290345 Valve Cover Gasket 1540126
Wear Plate 1290357 Suction Manifold Seal 1590051
Crosshead, R.H. & Center 1293015 Rectangular Packing 2410031-348
Crosshead Liner 1293017 Rectangular Packing 2410031-427
Crosshead Pin 1293028 Ring Joint Gasket 6908033

8P80

DESCRIPTION PART NO. DESCRIPTION PART NO.
Discharge Module, Studded 1291280 Piston Rod Clamp 1291085
Suction Module, Studded 1290338 Crosshead, R.H. & Center 1291090
Seal Retainer 1290174 Liner Bushing 1291165
Back Up Ring 1290175 Liner Clamp 1291166
Wedge Adjusting Screw 1290178 Intermediate Rod Wiper Seal 1291182
Wedge Retaining Spring 1290181 Liner Spray Manifold 1291190
Valve Cover 1290307 Intermediate Rod Baffle 1291194
Threaded Ring 1290308 Sub Rod 1291276
Wedge Adjusting Screw Washer 1290315 Piston Rod 1291277
Discharge Connector 1290342 Discharge Spacer, Studded 1291286
Discharge Connector Adapter 1290343 Valve Guide Holder 1292140
Suction Module & Wear Plate Seal 1290344 Valve Guide Insert 1292141
Discharge Spacer Seal 1290345 Valve Cover Gasket 1540126
Wear Plate 1290357 Suction Manifold Seal 1590051
Crosshead, R.H. & Center 1291015 Rectangular Packing 2410031-348
Crosshead Liner 1291017 Rectangular Packing 2410031-427
Crosshead Pin 1291028 Ring Joint Gasket 6908033

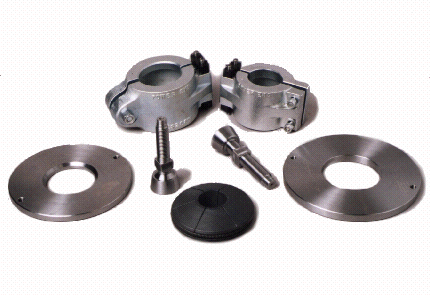

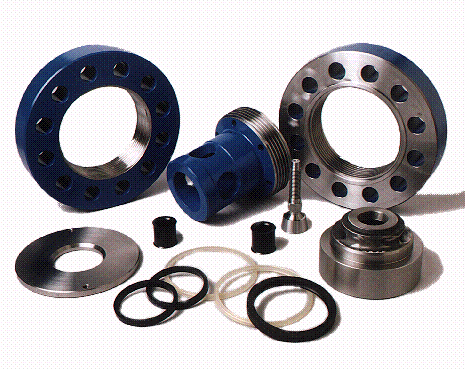

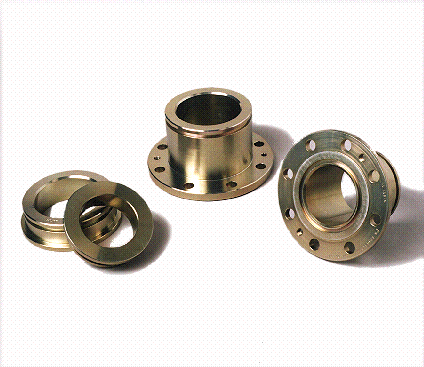

Part Photos

Click Here for an Enlarged Photo Click Here for an Enlarged Photo Click Here for an Enlarged Photo

Kandle Oilfield Products, Inc. ("KOP") is an indepentdent manufacturer of replacement parts. KOP is neither a licensee, nor is it affliated with any of the original equipment manufacturers named above. The manufacturers names or trademarks used herein are solely for identification purposes and are not intended by KOP to cause confusion as to the source, sponsorship, or quality of the parts manufactured by KOP. The original manufacturers named above and throughout this catalog do not sponsor, promote, warranty or endorse KOP's products.
All KOP parts are marked with KOP's distinctive mark(s) and part numbers are for identification purposes only.
