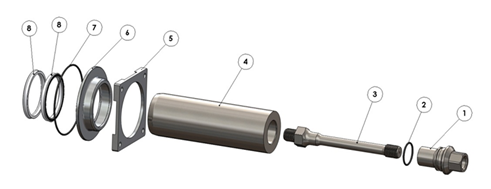

| Push Rod Subassembly |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L-2 Spacer |
|
|
Loc |
|
Qty |
|
Part No. |
| Retainer, Push Rod
HT-400™, Two Piece Nose, L-Spacer |
|
1 |
|
3 |
|
316.21066.KOP |
| O-Ring, 90 Duro, 1
7/8 x 1 5/8 x 1/8, 568-223 |
|
2 |
|
3 |
|
8.34020.KOP |
| Tie Rod, Push Rod,
L-Spacer, HT-400™ |
|
3 |
|
3 |
|
316.25166.KOP |
| Push Rod, Two Piece,
L-Spacer, HT-400™ |
|
4 |
|
3 |
|
316.21065.KOP |
| Retainer, Push Rod Seal
Housing, L-2 Spacer, HT-400™ |
|
5 |
|
3 |
|
316.10012.KOP |
| Housing, Push Rod Seal,
Floating, L-2 Spacer, HT-400™ |
|
6 |
|
3 |
|
316.10013.KOP |
| O-Ring, 70 Duro, 5 11/16
x 5 1/2 x 3/32, 568-161 |
|
7 |
|
3 |
|
70.33739.KOP |
| Seal, Push Rod,
L-Spacer, HT-400™ |
|
8 |
|
6 |
|
316.10014.KOP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
